Pipe & Bolt Threading Machines MCC 500

Pipe Threading Machines

Brands: MCC

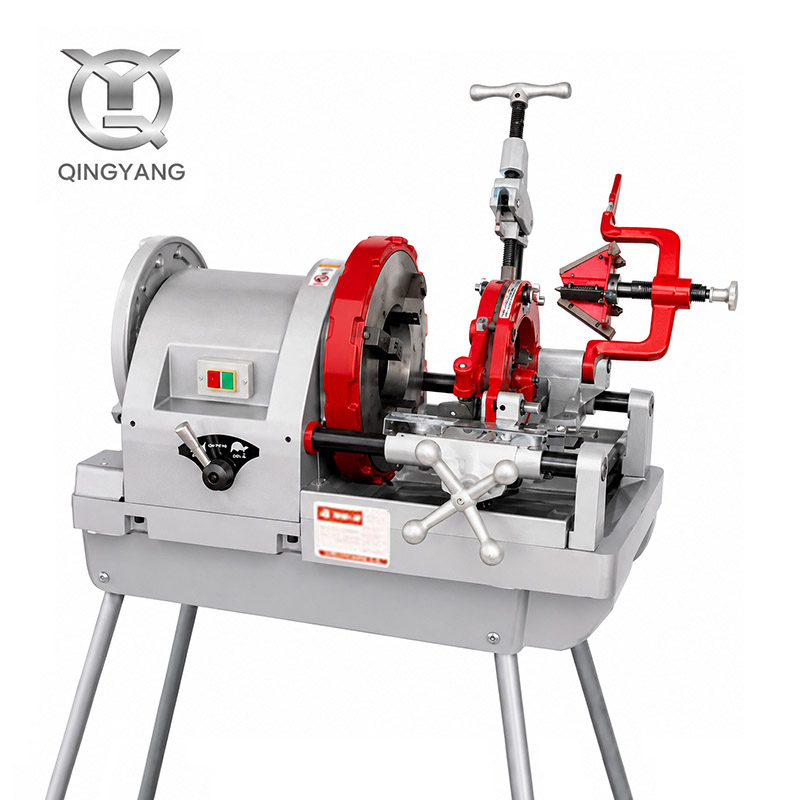

Pipe & Bolt Threading Machines MCC 500 are reliable and efficient machines designed for professional pipe and bolt threading applications. The MCC 500 features an automatic oiling system that supplies oil directly to the dies and pipe through the die head during threading, with an adjustable oiling volume for controlled and efficient operation. It is equipped with a front chuck with replaceable rocker-type jaws for secure pipe holding, while the automatic switch-off carbon brush helps protect the motor from burning and extends its service life.
Specifications
Capacity 1/4” – 2” Pipe BPST or NPT W3/8 – 1.1/4 Bolt, M8-M30 Bolt C15-C51 (JIS Conduit), PF1/2-PF2 (Corresponding BSPP)
Motor Single phase 750W 50/60Hz series motor equipped with brake for quick stop. Adaptable to local voltage.
Rotating Speed 35 rpm (60Hz) without load
Weight 41 Kg
Dimension 598 (L) × 401 (W) × 390 (H) mm
Standard Accessories
Item Description Quantity
Manual Pipe Die Head 1/4” – 2” Pipe BPST or NPT 1 set
Pipe Dies K Type 1/2” – 3/4” BPST or NPT K Type 1” – 2” BPST or NPT 1 set 1 set
Cutting Oil 4 litre can 1 pc
Spindle Bearing Oil 60cc tube 1 pc
Hex Key 3, 4, 5, 6, 8mm Each 1 pc
Cross Point Screw Driver 1 pc
Carbon Brush 1 set
Machine Cover 1 pc
Tool Box 1 pc
Legs 1 set
